TX26-32YW V3.0

Todaair's 2.4GHz outdoor Wi-Fi AP delivers 300Mbps aggregate throughput, covering areas up to 200 meters. It is designed for seamless deployment in residential, commercial, and high-density environments, including retail complexes, hospitality venues, and healthcare facilities.

• 2.4GHz operation
• With IEEE 802.11b/g/n standards
• Up to 300Mbps rates and supporting dense connectivity for up to 40 users across 200m
• Supports PoE 48V for power
• 2*10/100Mbps auto-negotiating WAN ports
• With IP65 UV-resistant housing

l Compliant with IEEE 802.11b/g/n standards, it supports MU-MIMO and OFDMA technologies. It has achieved groundbreaking advancements in four key technical areas: transmission rate, network capacity, coverage range, and interference resistance, delivering an unparalleled wireless connectivity experience to end users.

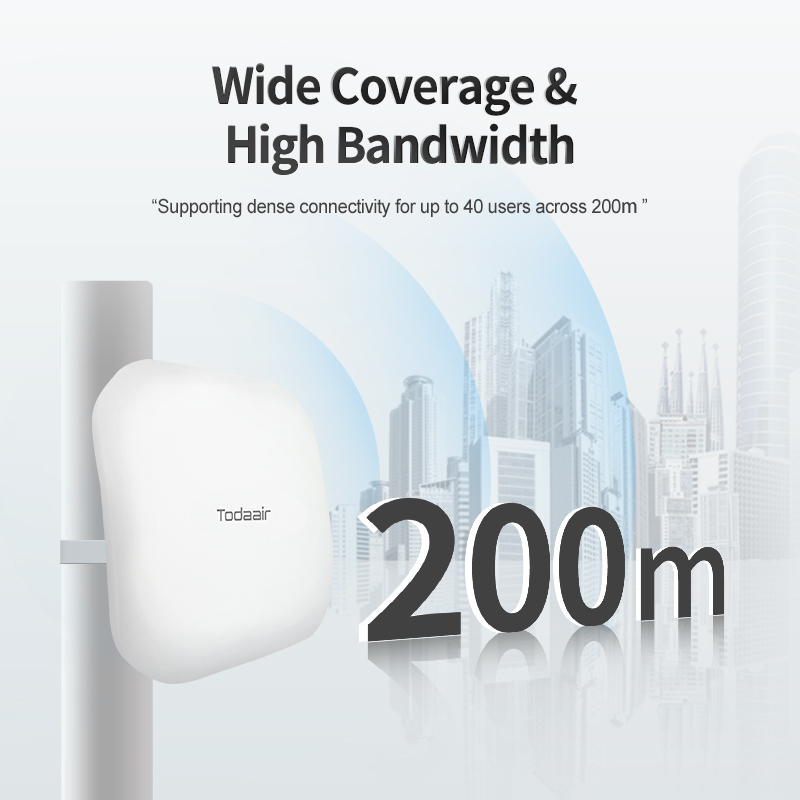

l Delivering up to 300 Mbps on a single frequency with 27 dBm transmit power. This device integrates four high-gain directional antennas, supporting dense connectivity for up to 40 users with coverage up to 200 meters. This design effectively addresses the high-bandwidth, high-capacity networking demands of enterprise, educational, hospitality, and residential environments.

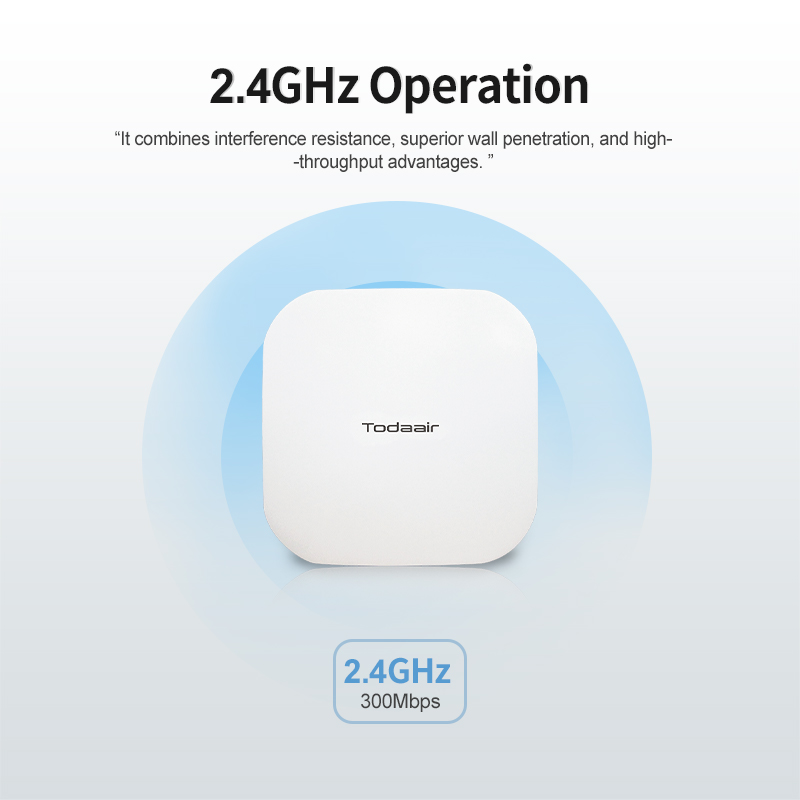

l Engineered with concurrent 2.4GHz operation, it combines interference resistance, superior wall penetration, and high throughput, delivering peak rates of up to 300Mbps.

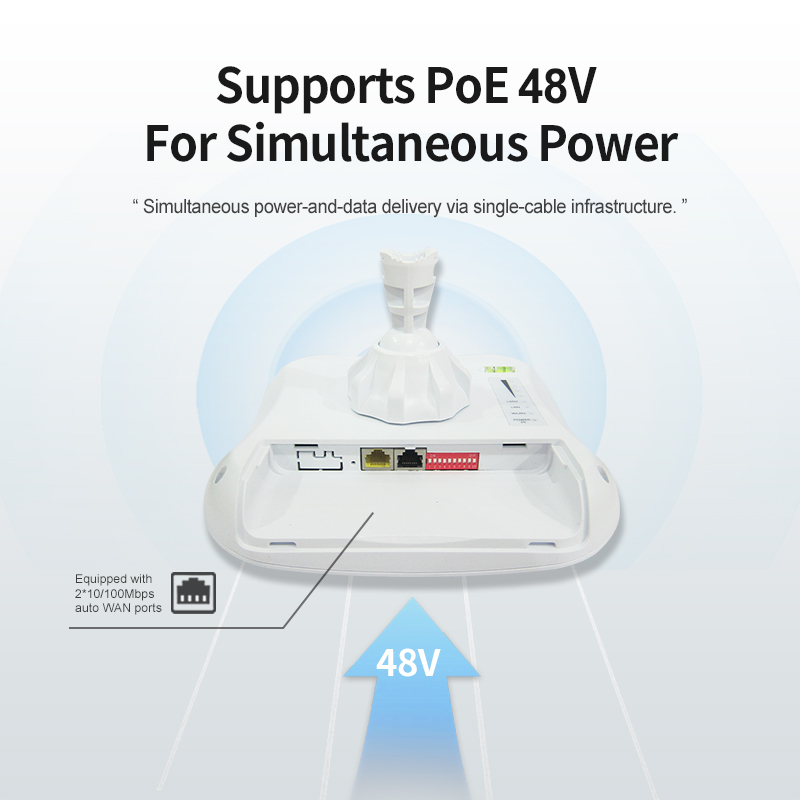

l Equipped with 2*10/100Mbps auto-negotiating WAN ports for high-throughput data transmission, the device supports 48V PoE input, enabling power and data transmission over a single cable. This dual-functionality reduces cabling complexity and enhances deployment flexibility across diverse application scenarios.



l Featuring an IP65-rated, UV-resistant housing, the device operates reliably in temperatures ranging from -20℉ to 149℉. It is designed to withstand extreme weather conditions—including rain, snow, heat, and lightning—ensuring stable performance in harsh outdoor environments.



l The platform, compatible with the Todaair APP, enables centralized network administration with real-time monitoring of topology, device status, and performance analysis. Its built-in one-click optimization engine ensures fast configuration adjustments, supporting agile and mission-critical network operations.





Pole-Mount
1 Align the universal joint bracket with the lock ring, ensuring the lock ring threads face the ball joint. Insert and rotate clockwise to engage.	2 Open the metal strap, thread it through the bracket base, and secure with the provided fastener.
3 Wrap the metal strap around the pole. Use a screwdriver to tighten the screw clockwise until the strap is firmly secured.	4 Attach the device to the universal joint bracket. Hand-tighten the lock ring to secure while maintaining slight looseness for pivot adjustment.
Wall-Mount
1 Align the universal joint bracket with the lock ring, ensuring the lock ring threads face the ball joint. Insert and rotate clockwise to engage.	2 Mount the wall plate to the surface using provided screws. Then fasten the universal joint bracket to the wall plate with additional screws.
3 Securely fasten the wall mount plate to a load-bearing wall using appropriate anchors.	4 Attach the device to the universal joint bracket. Hand-tighten the lock ring to secure while maintaining slight looseness for pivot adjustment.
